MACHINING SERVICES

Cnc Precision Lathe Machining

Lathe machining capabilities includes:

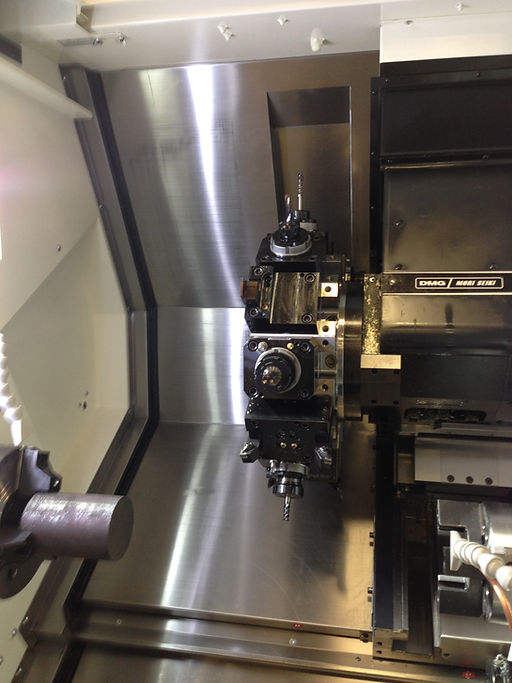

Mori Seiki NL 2500/1250 MC Live tooling lathe: 10" chuck with a 3 1/8 spindle thru hole, programable tailstock, Z travel of 49", max turning diameter of 14.4", equipped with ATS barfeeder

Mori seik NLX 2500/750: 10" chuck with a 3 1/8 spindle thru hole and programable tailstock, Z travel of 29", max turning diameter of 14.4"

2 Hyundai Wia L230 MC Live tooling lathes : 10" chuck with a 3 1/8 spindle thru hole, programable tailstock, max turning diameter of 14.4", equipped with ATS barfeeder

Nakamura WT300 TTSY Live tooling lathe: 4" bar feed diameter capability, Equipped with LNS barfeeder, Robotic ready for bigger diameter parts,1000 PSI with coolant chiller

2 Hyundai Wia 1800 TTSY Live tooling lathes : Equipped with Cellro robotic arm, 1000 PSI with coolant chiller

Cnc 4 Axis Precision Machining

Machine center capabilites:

Mori Seiki DV5100: 12k RPM spindle, Nikken 10" 4th axis with 3 1/8 thru hole, Cat 40, High pressure coolant, Work evelope of 43" x 20" x 20", Renishaw table and spindle probes

Kuraki KV700: 6k RPM spindle, Kitagwa 10" 4th axis with 3 1/8 thru hole, Cat 40, work envelope of 28"x16"x20"

OKK VM53R:12k RPM spindle, Nikken 10" 4th axis with 3 1/8 thru hole, Cat 50, 1000 PSI High pressure chilled coolant, Work evelope of 43" x 20" x 20", Renishaw table and spindle probes

Inspection Equipment

Inspection Equipment:

Tesa 700 Micro Hite

Tesa 3 Micro Hite

Gagemaker Mic Trac 24"

Mitutoyo Surftest SJ-210

Mitutoyo Surftest SJ-410

Keyence IM 7030

Keyence XM CMM

Mitutoyo PH-3500 Comparator

Dial bore gages from .7-10"

Various od mics, thread gages and other measuring equipment

Programing Software:

Mastercam 2025

Gagemaker TDWIN Disk

Other capabilities:

Horizontal Kalamazoo 1016 variable speed with a 10' conveyor

Laser engraving

25 Ton 2 Stage hydraulic press

SERVICES

ABOUT

Lizotte Precision Machining LLC. was founded in 2011 and is backed with over 24 years of machining and manufacturing experience. Which has lead to the following machining capabilites in various industries such as oil and gas, medical, aerospace, subsea, agriculture, and heavy equipment replacement parts. Using today's technology combined with the best machine builders in the world and also the latest in tooling innovatioins makes us very efficent to machine and hold close tolerence parts in any type of material.
